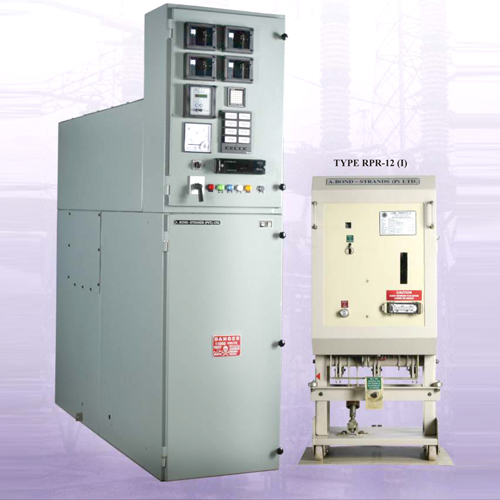

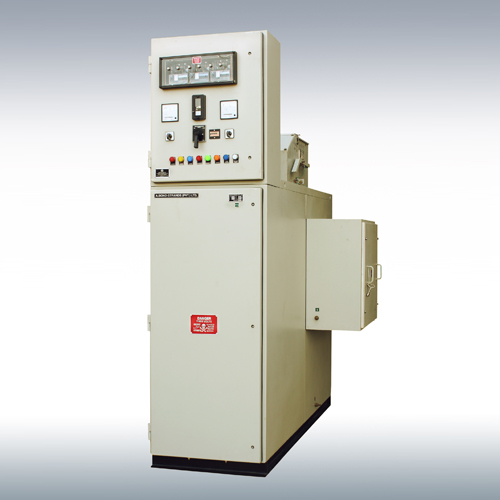

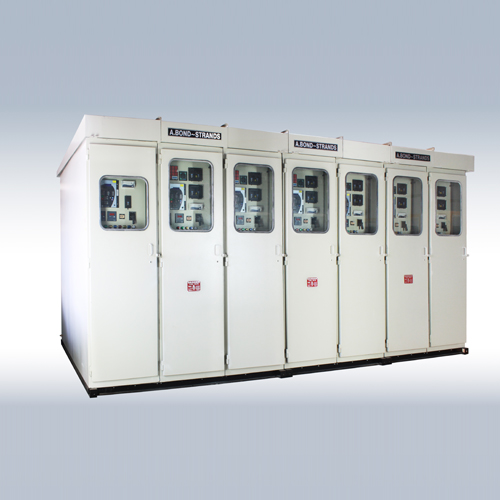

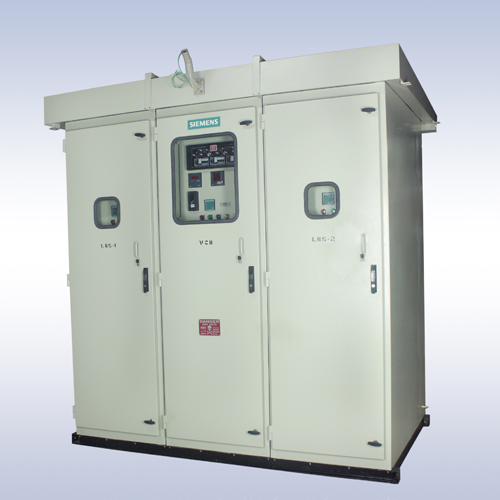

Compact 12kV/24kV RMU (RING MAIN UNITS)

A  Bond  Strands  is  engaged  in  the  field  of design  and manufacture of Medium Voltage Ring Main Units (RMU). Ring  main  units  with Tee-Off fuse switch  units,  are the compact  distribution   panels  designed   to  cover  the switching duties which  is a vital part of any distribution network.

Category:
enquiry

Product Enquiry

Description

A  Bond  Strands  is  engaged  in  the  field  of design  and manufacture of Medium Voltage Ring Main Units (RMU). Ring  main  units  with Tee-Off fuse switch  units,  are the compact  distribution   panels  designed   to  cover  the switching duties which  is a vital part of any distribution network.

Salient Features

  • Sheet steel enclosed & custom built
  • Three pole breaking
  • Air as insulation medium
  • Quick make, Quick  break manual operation
  • Possibility of easy renewal of fuse
  • Mechanical interlock
  • Suitable for INDOOR or OUTDOOR installation
  • Easy to extend at site
  • Trip-all phases for fuse tripping.
  • Shunt Release for remote tripping
  • Cost effective design
  • Pad locking in disconnected position
  • Motorised version also available

Ordering Information

  1. Typo of RMU – No of switch/Iuse
  2. Indoor/Outdoor application
  3. Provision for earthswitch
  4. Finish (unless specified our standard shade is light
  5. Optional extras like fuses, auxiliary contacts, shunt release etc,
  6. Mimic Diagram (optional)
  7. Special requirements like meterlng/protection equipment.
  8. Whether remote operation (Motor operation) required.
